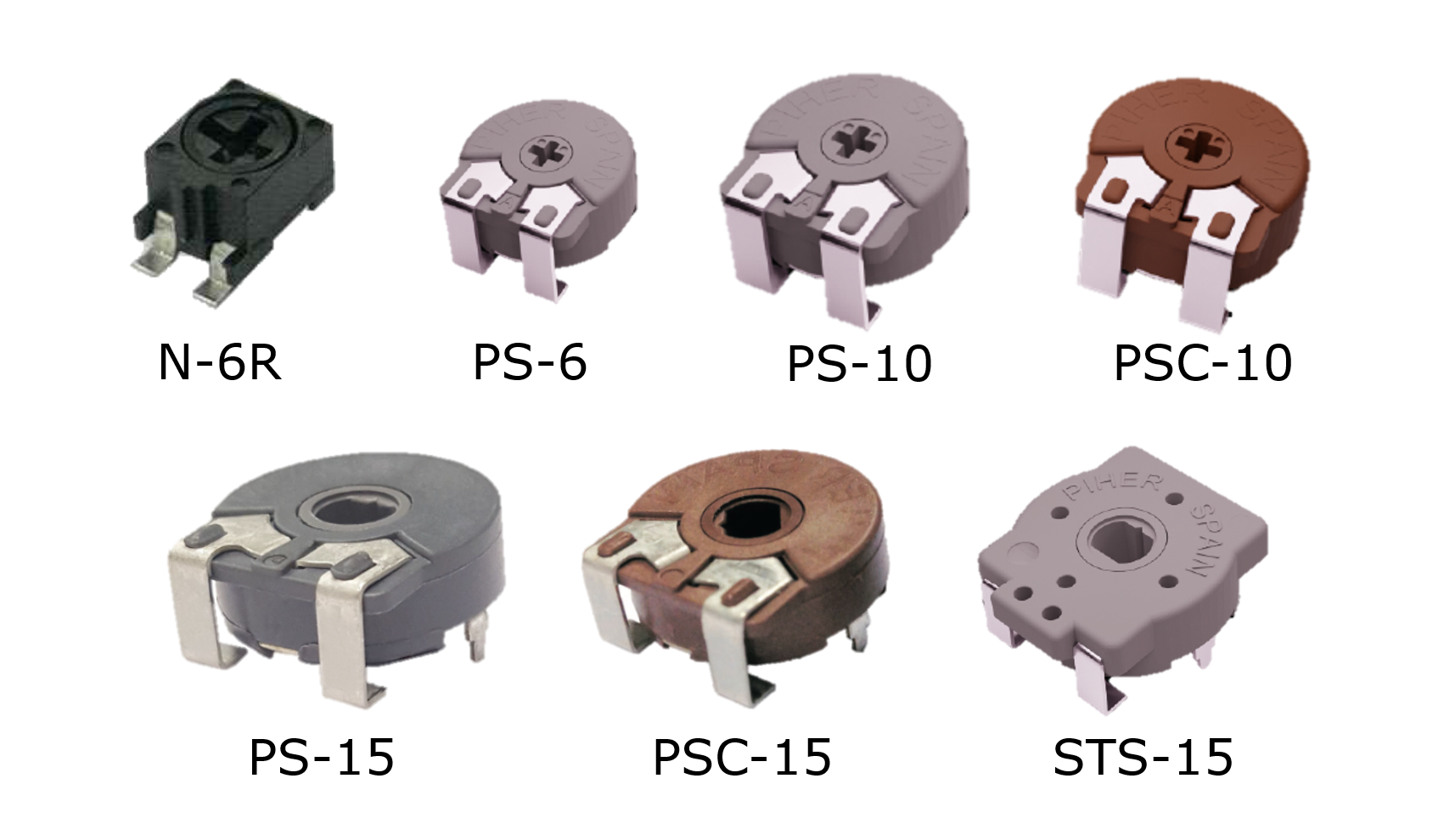

SMD Potentiometers


Series Size Electrical Angle Power Rating (W) Resistance Range Temperature Range Rotational Life (Max)
N-6R 6 mm 245°± 25° 0.1 (50℃) 250Ω to 500kΩ -25℃ to +70℃ 10,000
PS-6 6 mm 200°± 20° 0.1 (50℃) 1kΩ to 1MΩ -40℃ to +85℃ 10,000
PS-10 10 mm 220°± 20° 0.15 (50℃) 1kΩ to 1MΩ -40℃ to +85℃ 10,000
PSC-10 10 mm 220°± 20° 0.33 (70℃) 100Ω to 5MΩ -40℃ to +90℃ 10,000
PS-15 15 mm 240°± 20° 0.25 (50℃) 1kΩ to 1MΩ -40℃ to +85℃ 100,000
PSC-15 15 mm 240°± 20° 0.5 (70℃) 100Ω to 5MΩ -40℃ to +90℃ 10,000
STS-15 15 mm 333° 0.25 (50℃) 1kΩ to 1MΩ -40℃ to +85℃ 100,000
附件下载
  N-6R_Potentiometer 544.6 K  2023-10-13
  PS-6_Potentiometer 1.8 M  2023-10-13
  PS-10_PSC-10_Potentiometer 848.2 K  2023-10-13
  PS-15_PSC-15_Potentiometer 1.2 M  2023-10-13
  STS-15_Potentiometer 1.6 M  2023-10-13
