Through-Hole Potentiometers
Series
Size
Electrical Angle
Power Rating (W)
Resistance Range
Temperature Range
Rotational Life (Max)
N-6
6 mm
245°± 25°
0.1 (50℃)
100Ω to 1MΩ
-25℃ to +70℃
100
PT-6
6 mm
200°± 20°
0.1 (50℃)
220Ω to 5MΩ
-25℃ to +70℃
10,000
PT-10
10 mm
220°± 20°
0.15 (50℃)
100Ω to 5MΩ
-25℃ to +70℃
100,000
PTC-10
10 mm
220°± 20°
0.33 (70℃)
100Ω to 5MΩ
-40℃ to +90℃
10,000
PT-15
15 mm
240°± 20°
0.25 (50℃)
100Ω to 5MΩ
-25℃ to +70℃
100,000
PTC-15
15 mm
240°± 20°
0.5 (70℃)
100Ω to 5MΩ
-40℃ to +90℃
10,000
ST-15
15 mm
333°
0.25 (50℃)
1kΩ to 100kΩ
-25℃ to +70℃
200,000
附件下载
N-6_Potentiometer
875.1 K
2023-10-13
PT-6_Potentiometer
1013.5 K
2023-10-13
PT-10_PTC-10_Potentiometer
1.5 M
2023-10-13
PT-15_PTC-15_Potentiometer
766.7 K
2023-10-13
ST-15_Potentiometer
1.9 M
2023-10-13
- PIHER系列產品 -
SMD Potentiometers
PIHER
Potentiometers
可调式电阻

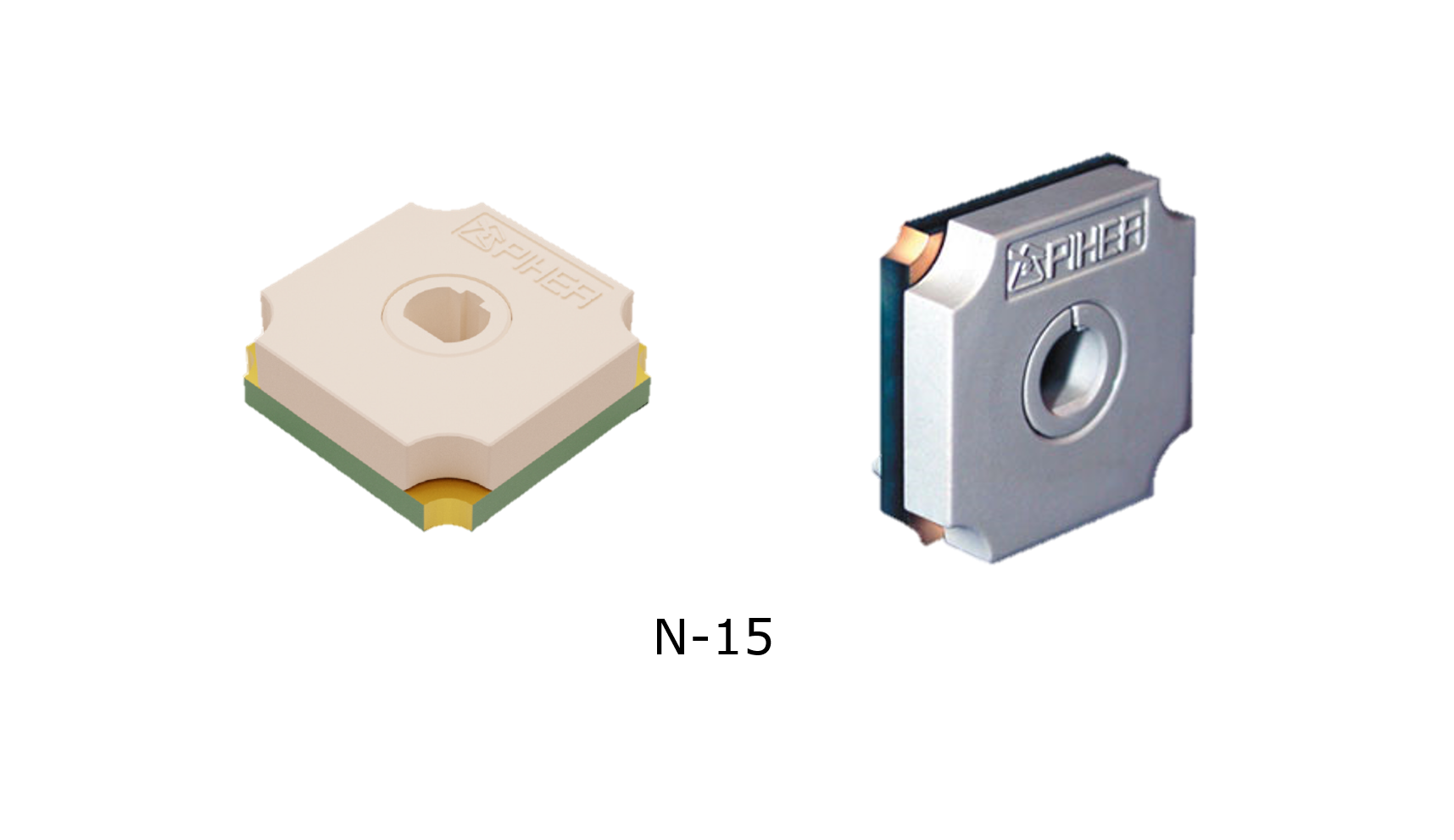

Low Profile Position Sensor / Potentiometer
PIHER
Potentiometers
可调式电阻

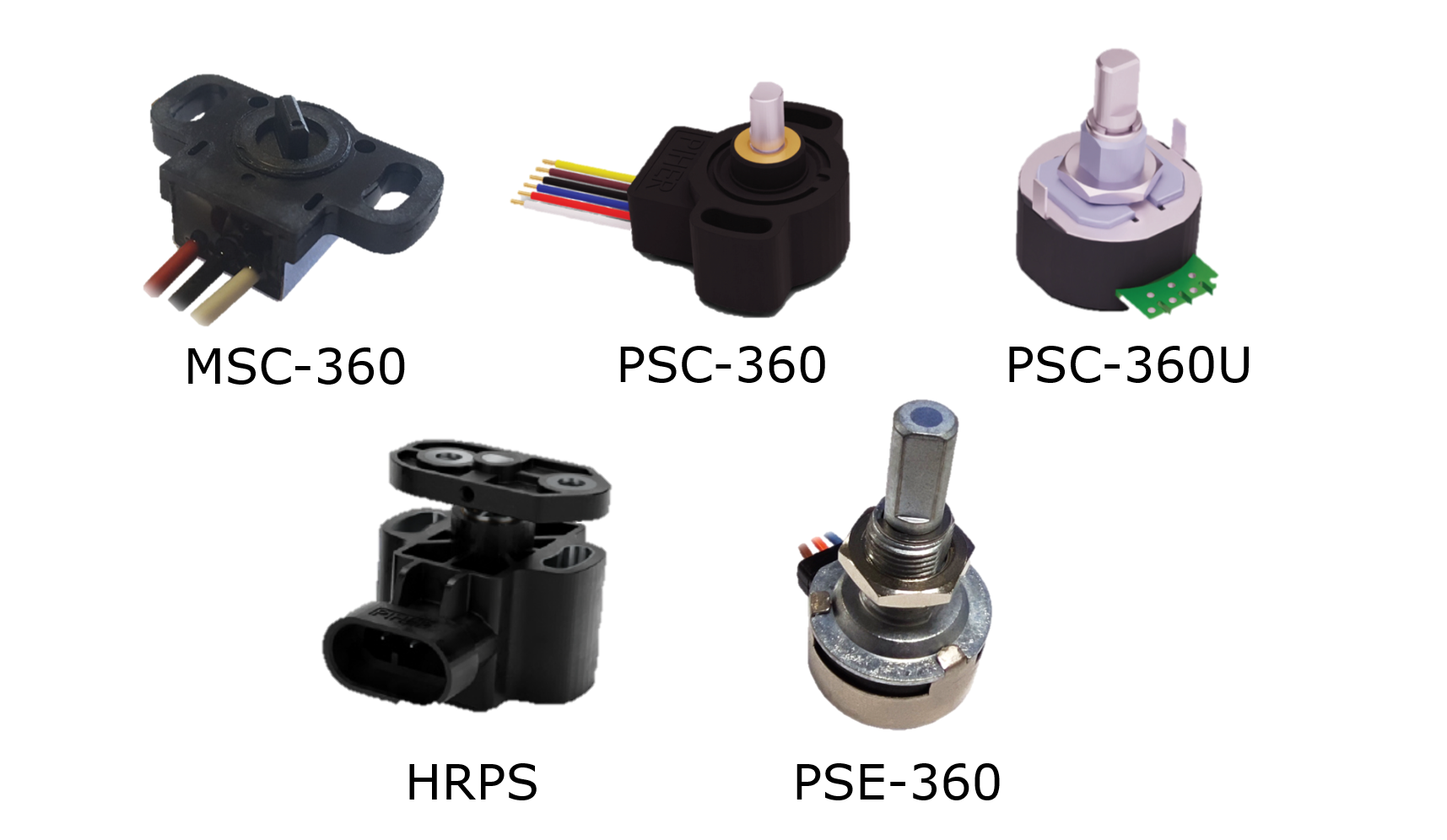

End-of-Shaft Rotary Position Sensors
PIHER
Position Sensors
传感器

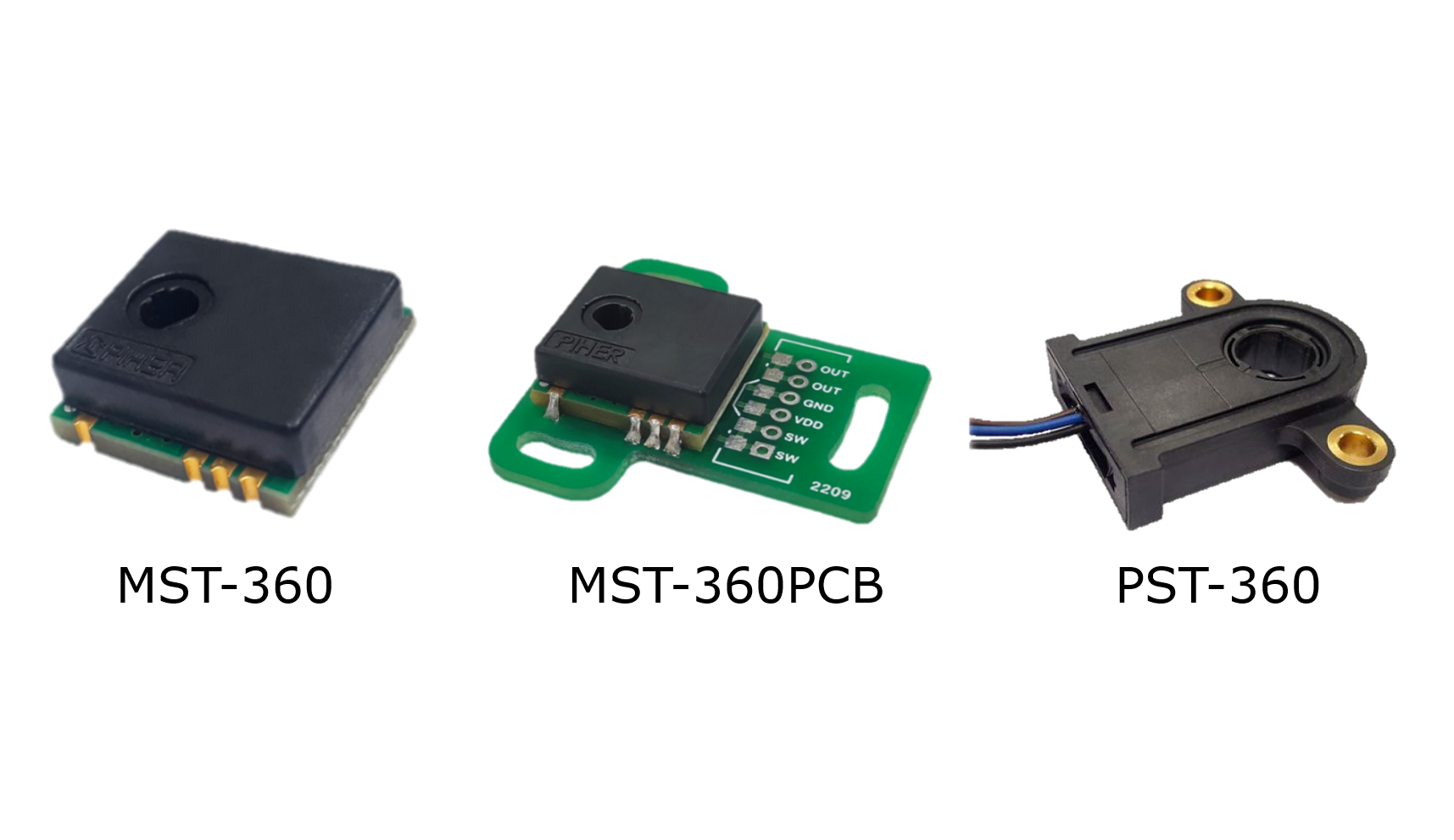

Through-Shaft Rotary Position Sensors
PIHER
Position Sensors
传感器

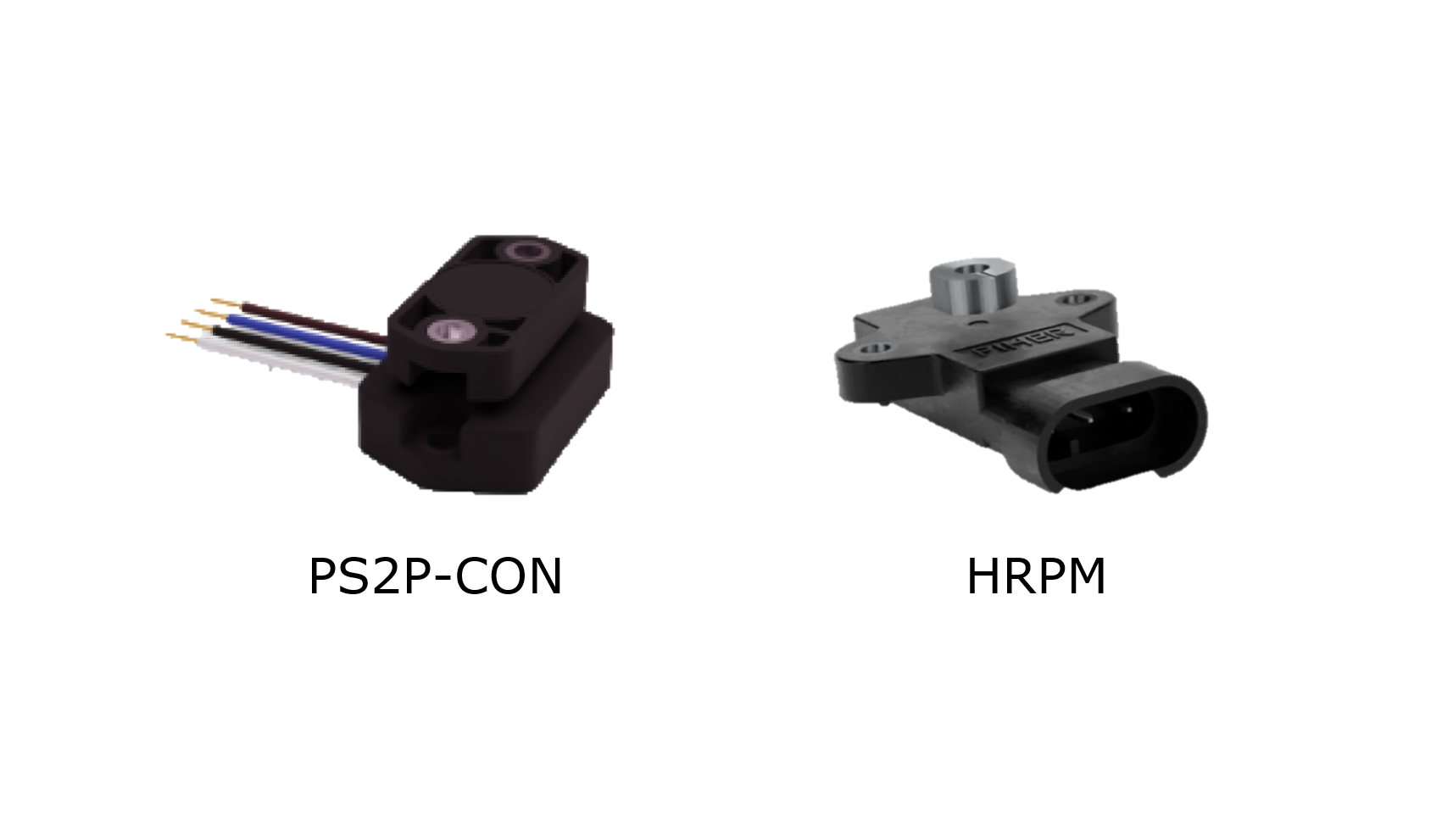

Touchless Rotary Position Sensors
PIHER
Position Sensors
传感器

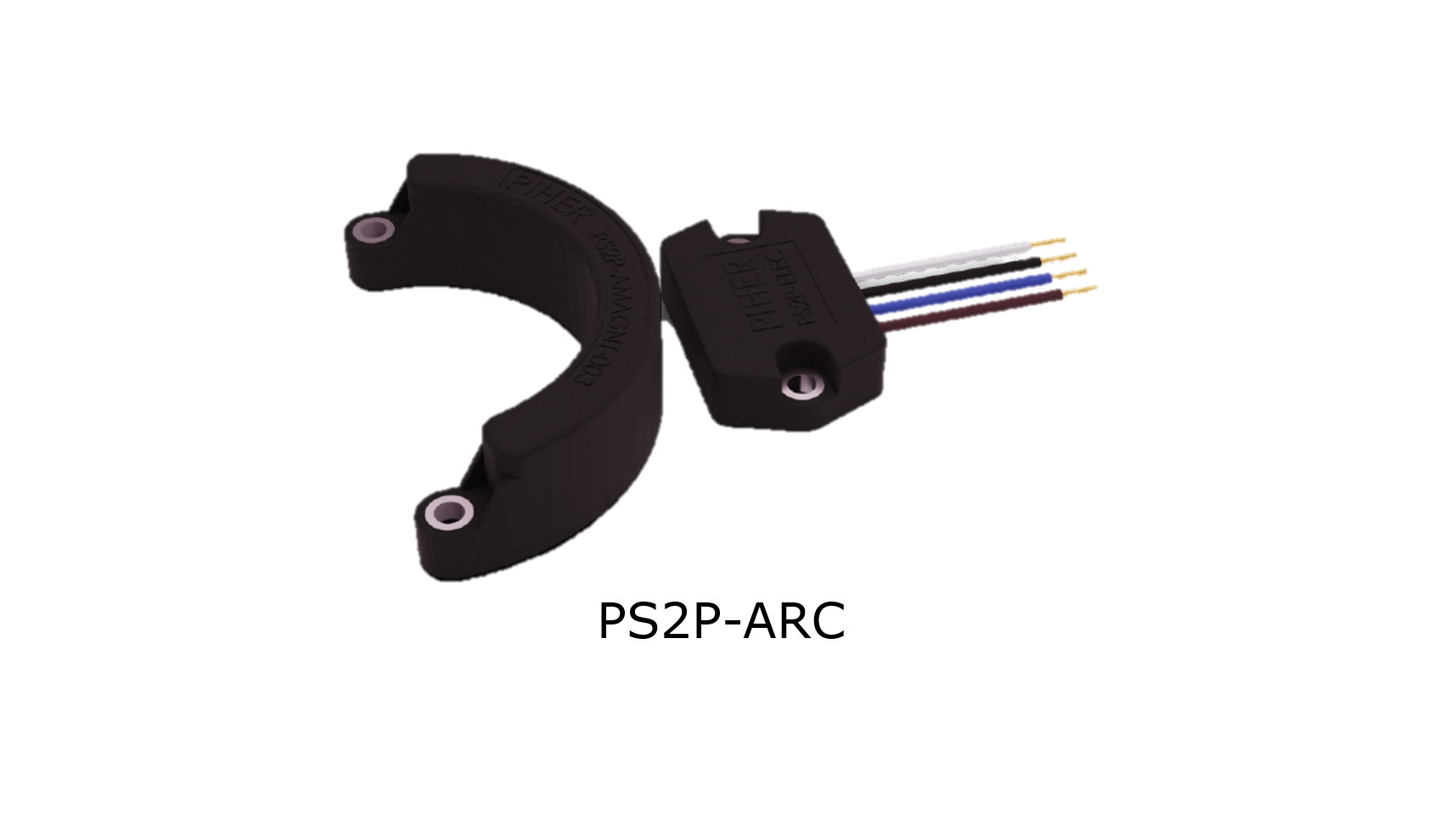

ARC Position Sensors
